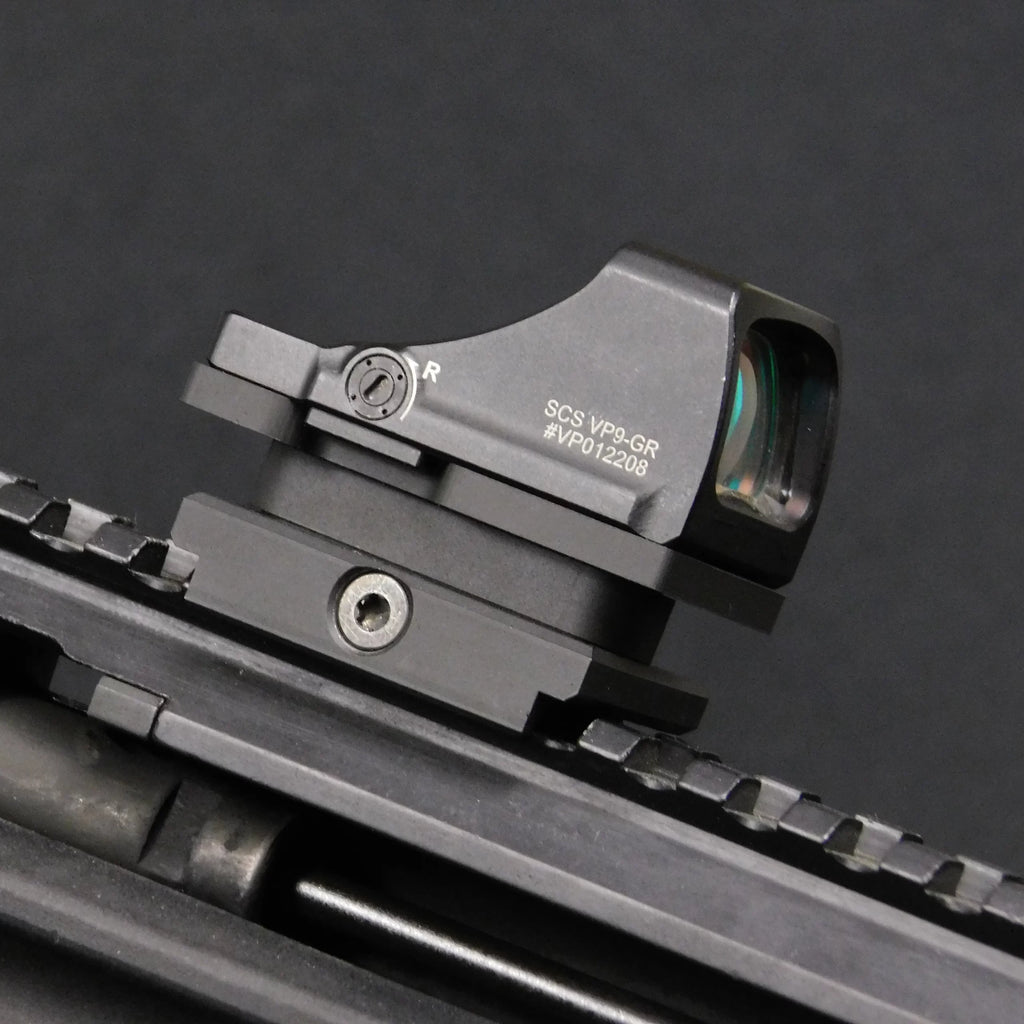

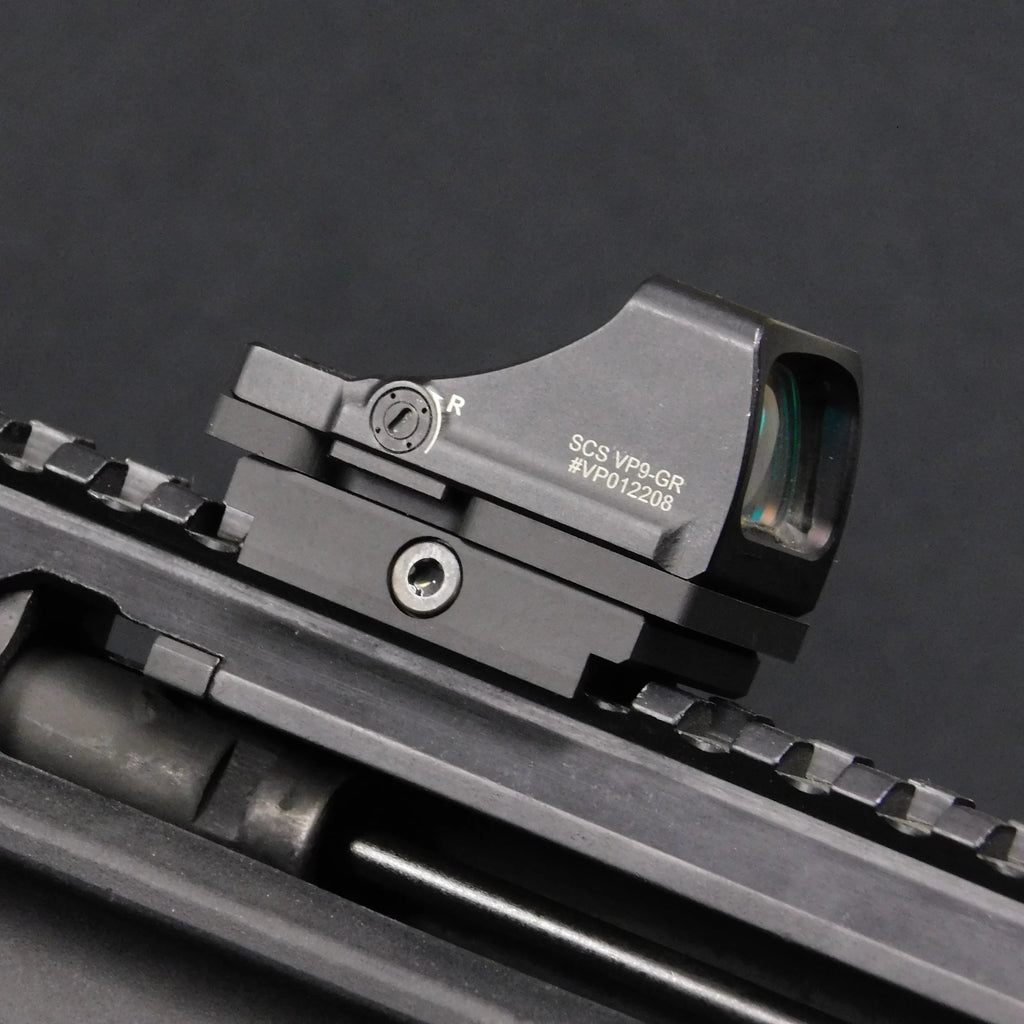

About This Picatinny ModMount
This mount comes with the Picatinny base and optic-side mount needed to install your optic on a standard Picatinny rail. The current components and hardware are listed above.
Standard or Quick Detach
The Standard base uses a screw-tightened clamp to secure the mount to the rail. The Quick Detach base uses a lever-and-latch system so the mount can be installed and removed without tools.
Both versions use the same M4 x 8 mm hardware to connect the base to the optic-side mount.
How the Two-Part System Works
The base clamps to the rail and provides the recessed oval ModMount interface. The optic-side mount carries the optic footprint and has a matching oval stud. Two flat-head M4 screws secure the base and optic-side mount together.
Every ModMount optic-side mount works with every ModMount base. This makes it possible to move an optic-side mount between compatible firearm or rail bases. Learn more in the ModMount system guide.
Optional vertical and 45-degree offset spacers install between the base and optic-side mount to raise or reposition the optic. Spacers are sold separately unless they appear in the included-components list.
Compatibility
Use this mount on a standard Picatinny rail. Select the Standard or Quick Detach clamp style based on how you want to install and remove the mount.
Installation Notes
Unload and clear the firearm before installation. Seat the base fully in a rail slot. Tighten the Standard clamp evenly, or close the Quick Detach lever fully, then confirm that the base is secure on the rail.
Seat the optic-side mount, or an optional spacer and optic-side mount, fully in the oval interface. Without a spacer, secure the assembly with two flat-head M4 x 8 mm screws tightened to 10 in-lb dry or 7.5 in-lb with liquid thread locker. Spacers include the longer screws required for their height.
Attach the optic and dry-fit the complete assembly before final installation. Confirm that no optic screw protrudes through the optic-side mount or contacts the rail or receiver.
Follow the installation instructions for the complete optic-screw check, torque values, and optional thread locker guidance.
Designed and Manufactured in the USA
Armadyne-manufactured ModMount components are designed and manufactured in the USA. They are CNC machined in our Lincoln, Nebraska shop, then sandblasted and finished with H-Series Cerakote for wear and corrosion resistance.
Warranty and Returns
Armadyne stands behind the mounts and components we manufacture. Review our warranty and returns information for support, exchanges, and discretionary return terms.
